TYRE SIZE 12.5″ X 1.5″

POWER 250W

RANGE 32km

PRODUCT WEIGHT  14kg

1-2 Weeks Dispatch



Transform Your Wheelchair E-Bike

With all the new technology going around, Rio Mobility has come up with a way to make a simple wheelchair function like an electric bike.

That’s right, the Rio Mobility E-Dragonfly Wheelchair Attachment can easily be installed on your wheelchair and features a quick remove and connect function.

Powered by a 250W electric motor, this attachment has 5 power-assisted speeds for more control of the amount of assistance that you need.

Now you make getting around easier with this convenient wheelchair attachment, a guaranteed life changer.

Key Features

• The E-Dragonfly is ridden at moderate speeds which suit your preference with its 250W motor, making things easier as you choose between the 5 power-assisted speeds.
• When the battery is discharged, it takes up to 4 hours only to fully charge it to provide you with a range of 32km.

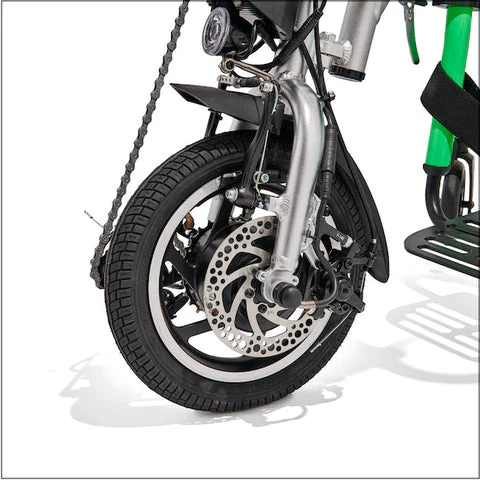

• Equipped with a 140mm disc brake (with a locking lever) and a Promax V-Brake, this wheelchair attachment provides perfect control when riding.

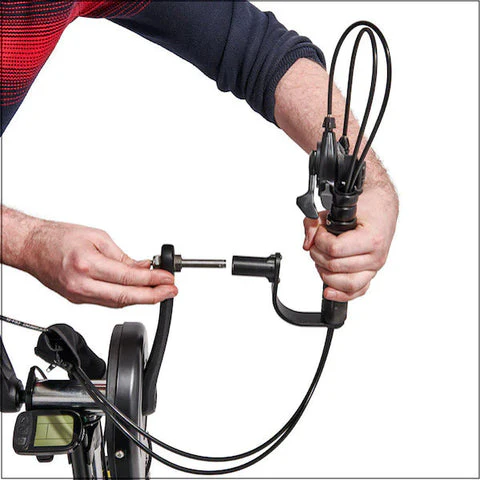

• You can simply detach the E-Dragonfly when you need to pack it up when traveling and reconnect it afterward without trouble.

If you are unsure about the legality of an electric ride in your state or area, please refer to this link: https://www.eridesolutions.com.au/pages/safety

Specifications

POWER

• Battery: lithium ion, Samsung, 36V, 6.6AH, 238 Wh
• Battery Range: >20 miles/32 km
• Charger: 36V, 2A output
• Voltage: 100~240V
• Charging Time: ~4 hours if battery is fully discharged
• Motor: 250W, 36V geared brushless hub motor

BRAKES

• 140mm disc brake with locking lever
• Promax V-brake

FRAME & COMPONENTS

• Frame Aluminum 6061-T6
• Light LED

DRIVE TRAIN

• 7 speed derailleur
• 11-28T cassette
• 33T chain ring
• Index shifter
• Tire 12.5″ X 1.5″ (40-203)

WEIGHT

• Attachment Frame Weight: 2.6 kg
• Drive Unit Weight: 9.5 kg
• Battery Weight: 2.0 kg
• Total Weight with Battery: 14 kg
• Maximum Weight: 127 kg (combined)

Shipping

• Shipping Dimensions: 31” x 11” x 14” / 104cm x 30cm x 35.5cm
• Shipping Weight: 38.0 lbs / 17.3 kg

Additional Info

• The eDragonfly attaches to most wheelchairs.

• There is an installation process that typically takes around 30 minutes to an hour, you can DIY
• After the installation process is completed once, the device latches on and off your wheelchair in seconds.
• Index shifter mounted on the handle to easily shift gears.
• 250W, 5 power-assisted speeds give you control for the amount of assist you need.
• Removable lightweight lithium ion battery gives you >20 miles range.
• Frame removes easily without tools for transportation in car, plane, or for storage.
• Take your wheelchair out and enjoy the freedom to go further than your normal handcycle. The eDragonfly power assist helps takes you to places you've never thought possible.
