SPEED 25km/h

MOTORS 500W

RANGE Up to 110km

BATTERY 48V 17Ah

TYRE SIZE 20"

WEIGHT LOAD 150kg

WITH FREE PHONE HOLDER

*Available for demo in Banksia Beach*

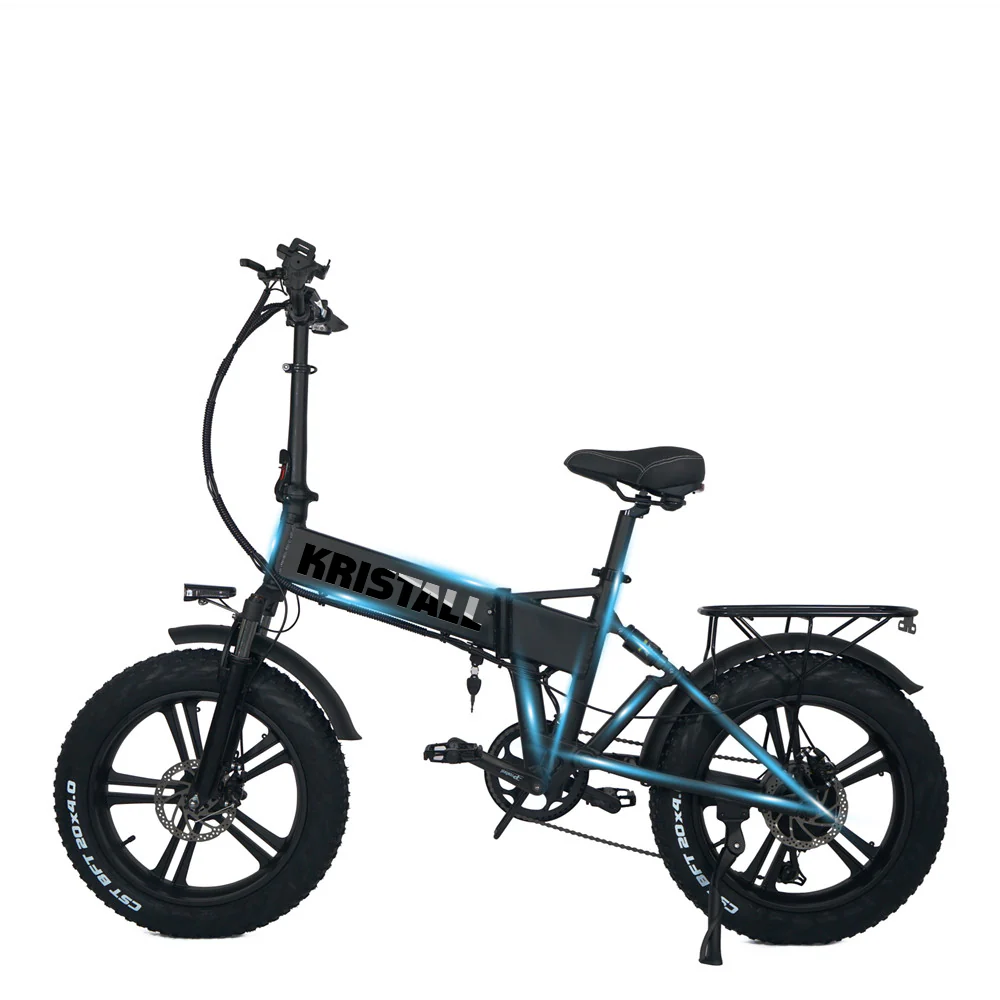

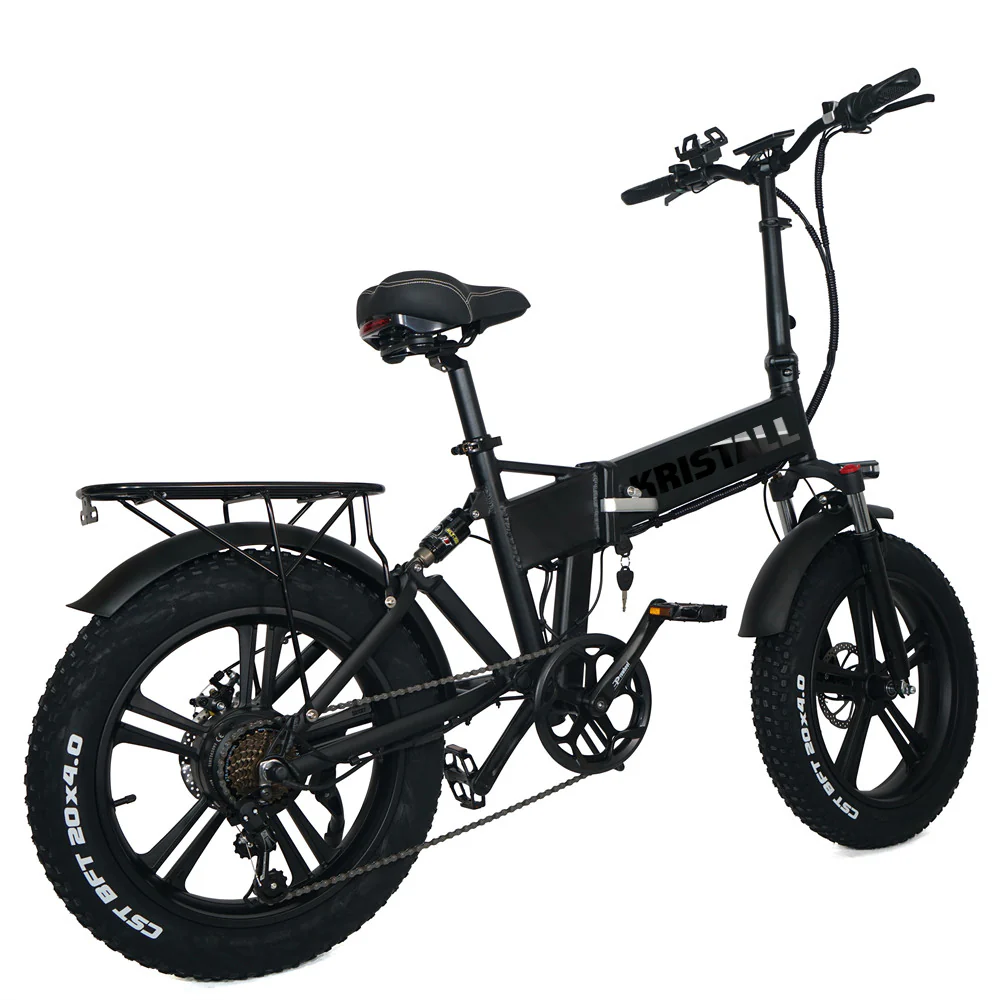

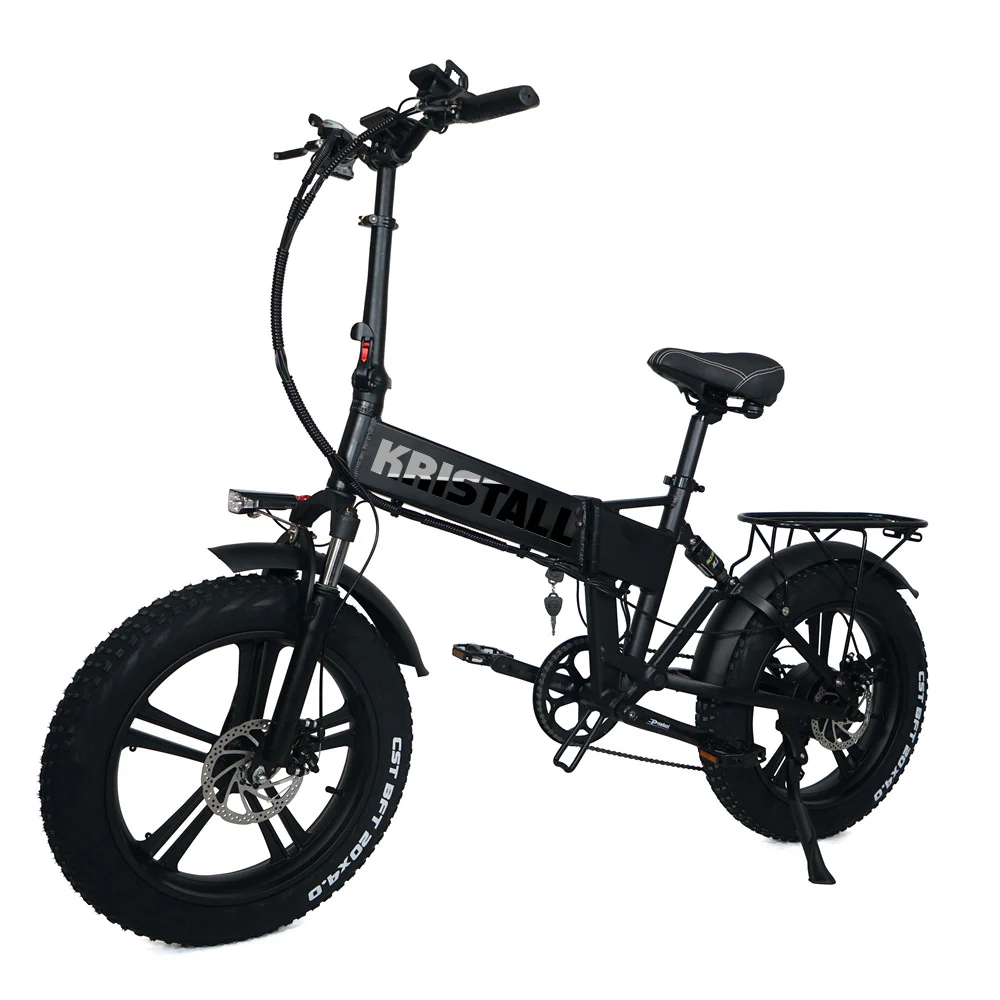

Introducing the KRISTALL RX20 Electric Bike, a revolutionary blend of performance, convenience, and style. Engineered with precision and crafted with premium materials, this electric bike redefines urban commuting.

Featuring a robust aluminium alloy frame and powerful 500W motor, the RX20 effortlessly tackles city streets and rugged terrains alike. With a top speed range of 30-45km/h and a maximum loading capacity of 150kg, it ensures a smooth and comfortable ride for riders of all sizes.

Equipped with a high-capacity 17Ah lithium battery, the RX20 offers an impressive range, with options for both pure electric and boost mode. Whether you're cruising through the city or embarking on longer journeys, this bike provides the flexibility and reliability you need.

With three distinct riding modes—electric-only, cycling mode (without electric), and assistant mode—users can tailor their riding experience to suit their preferences and terrain. Plus, the hydraulic disc brakes ensure reliable stopping power, enhancing safety and control on every ride.

Compact and portable, the RX20 folds effortlessly for easy storage and transportation, making it perfect for commuters and adventurers alike. And with a comprehensive package including a charger, basket, back rack, taillights, repair tools, and a portable pump, you'll have everything you need to hit the road with confidence.

Backed by a 1-year warranty on electric parts, the KRISTALL RX20 Electric Bike delivers unrivaled performance and peace of mind. Experience the future of urban mobility—ride with KRISTALL today.

Performance

• Top speed: 30-45km/h
• Range Pure Electric: 40-55km
• Range Boost Mode: 80-110km
• Grade Ability: 30 degree

Material

• Battery type:18650 Lithium battery
• Rated voltage (V):48V
• Input voltage (V): 54V
• Battery capacity (AH): 17Ah
• Motor power: 500W
• Input voltage (V): 100-240V
• Rated current: 2A
• Tire: CST 20*4.0in
• Frame material: Aluminium alloy 6061
• Gear: 7 Speeds Gear
• Torque (Nm): 80Nm
• Charging socket: European Standard Round Head
• Brake: Hydraulic brake

Weight

• Net weight: 27kg
• Gross weight: 36KG
• Battery weight: 4KG
• Max weight load of the rear rack: 120kg
• Max. Loading: 150kg

Measurements

• Bike length: 172cm
• Seat height: 84.5-115cm
• Handlebar height: 122-127.5cm
• Rear seat height: 65cm
• Size after folding: 95*75*48cm
• Package Size: 97*81*48cm

Pattern

1. Electric-only mode
2. Cycling mode ( without electric )
3. Assistant mode

Package:

1 x KRISTALL RX20 Electric Bike
1 x Charger ( AU Plug )
1 x Basket
1 x Back Rack
1 x Taillights
1 x Repair Tools
1 x Portable Pump
1 x Manual
1 year warranty on electric parts.
