SPEED 25km/h

MOTORS 500W

RANGE Up to 110km

BATTERY 48V 17Ah

TYRE SIZE 20"

WEIGHT LOAD 150kg

*Available for demo in Banksia Beach*

Stability and Power on All Terrains

When it comes to off-roading or riding on any kind of surface, the right electric bike should be able to remain steady and have the power to push forward.

The Kristall GW20 Electric Folding Fat Bike meets such demands and is one of the best picks you can get when it comes to riding off-road or other surfaces.

With its 20-inch tyres, you can expect a decent ride height as well as smooth and steady riding, allowing you to take little to no shock as you ride.

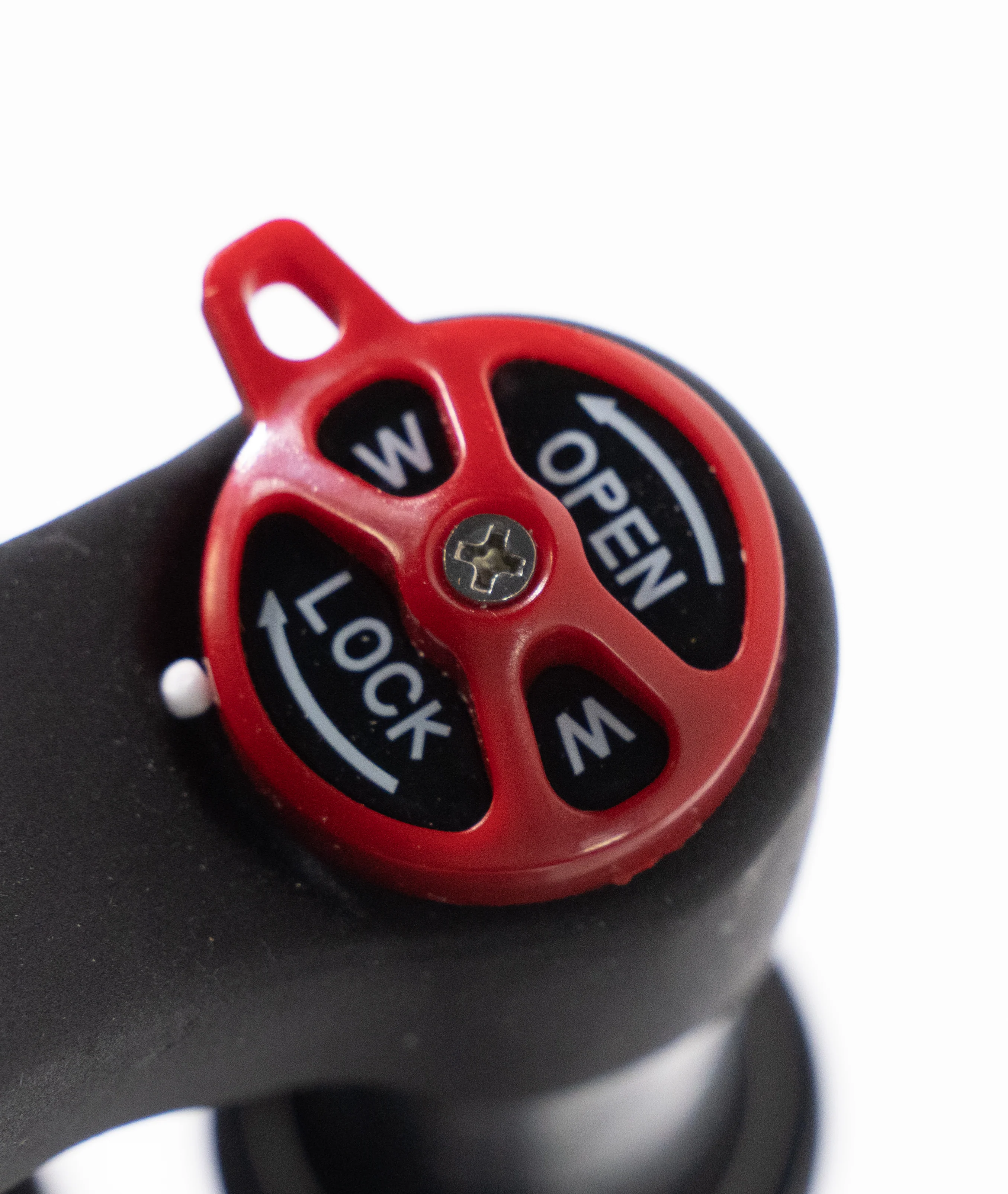

The Kristall GW20 comes with a shock absorption lock, which you can use to lock or unlock shock absorption for the electric bike’s front fork.

Enjoy Off-Roading With Convenience

Sometimes when you ride on different surfaces, you’ll need an extra kick of power, and that is exactly what the Kristal GW20 has with its 500W motor.

You can ride up a distance of 110km on a full charge of the 48V 17Ah battery, perfect for longer rides or challenging paths.

Ensuring that the Kristall GW20 is built for the extreme experience, it has been made with only the best high-grade material possible and can even carry a weight of 150kg.

The Kristall GW20 is a great all-around electric bike and it comes with its attachments and can even be folded for later use, perfect for all kinds of transportation purposes.

Key Features

• The Kristall GW20 comes with front and rear attachments which allow you to carry your other items with you or equip accessories on it.
• With the 500W motor, you can reach up to 25km/h easily and maintain average speeds or go beyond it when riding off-road.
• Equipped with CST 20*4 tyres, you can expect a more stable ride, making even the bumpiest paths seem smoother.
• Choose which riding mode you prefer by choosing between Electric-only mode, Cycling mode, and Assistant mode.

Electric Bikes are meant to be ridden at 25km/h (street-legal speed) on-road, going beyond this limit will restrict your riding to be for off-roading only.

For more information on E-ride laws, check out https://www.eridesolutions.com.au/pages/safety

SPECIFICATIONS

Performance

• Top speed: 30-45km/h (For off-road use only)
• Range Pure Electric: 50-70km
• Pedal assist Mode: 80-110km

• Grade Ability: 30 degree

Material

• Battery type: 18650 Lithium battery
• Charging time: around 5-6 hours.
• Battery life: after 1000 cycles, it may have 20% attenuation
• Rated voltage (V) :48V
• Input voltage (V): 54V
• Battery capacity (AH): 17Ah
• Motor power: 500W
• Input voltage (V): 100-240V
• Rated current: 2A
• Tire: CST 20*4.0in
• Frame material: Aluminium alloy 6061
• Gear: 7 Speeds Gear
• Torque (Nm): 80Nm
• Charging socket: European Standard Round Head
• Brake: Hydraulic brake

Weight

• Net weight: 27kg
• Gross weight: 36KG
• Battery weight: 4KG
• Max weight load of the rear rack: 120kg
• Max. Loading: 150kg

Size

• Bike length: 172cm
• Seat height: 92-103cm
• Handlebar height: 122-127.5cm
• Rear seat height: 65cm
• Size after folding:95*75*48cm
• Package Size: 97*81*48cm

Pattern
1. Electric-only mode
2. Cycling mode ( without electric )
3. Assistant mode

Package

• 1 x KRISTALL GW20 Electric Bike
• 1 x Charger ( AU Plug )
• 1 x Basket
• 1 x Back Rack
• 1 x Taillights
• 1 x Phone Holder
• 1 x Repair Tools
• 1 x Manual
