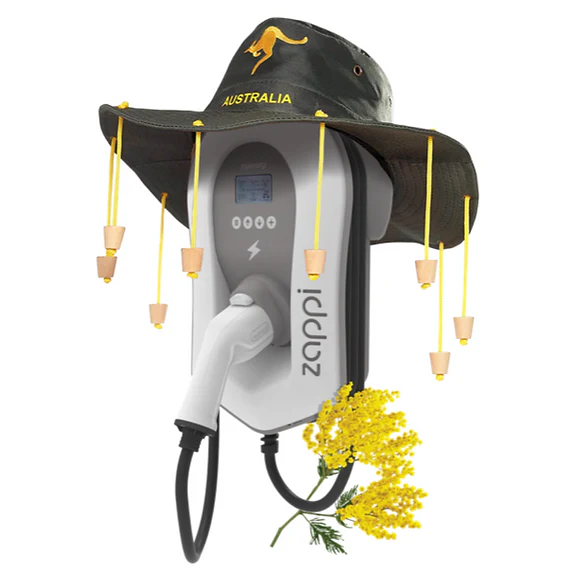

EVolution Zappi 7kW Electric Car Charger
The latest intelligent 'solar aware' charger Australia has been waiting for. Not only will Zappi charge your car way faster than the device supplied with your car, it will also guarantee that all power used to charge is taken from your solar or wind generation.
Available in both black or white options, add a note at checkout if you have a preference.
Available in both v2.0 and v2.1 with inbuilt hub
Essentially, this device will guarantee that you will self consume all of your self generated energy rather than sell back to the grid for a pittance.
No PV, no problem - Zappi can still operate like an ordinary EV charging station. You can always add your solar/wind system later.
Note: You may need additional CTs or Harvis to monitor your Solar and/or Battery wall.
Features and Benefits
- Comes in Black or White (add note at checkout for preference - subject to availability)
- Select either V2.0 or V2.1 has inbuilt hub
- Programmable timer function
- Dynamic load balancing for maximum installation flexibility
- Charge and event logging
- Pin-code lock function
- Tap operated display backlight
- Integral RCD for earth leakage protection
- Integral cable holster
- Remote control and monitoring add-on option
- Supplied with 1 CT clamp for measuring grid supply
- 3 charging modes (Fast, Eco and Eco+)
- Optimises microgeneration self-consumption
- Economy Tariff sensing to maximise savings
- RCM Compliant
- 3 year warranty
- IP65 rated enclosure suitable for outdoors
- Elegant and beautiful design
- High quality (Made in UK)
- Choose either Tethered Type 2 connector with 6.5m cable or Untethered (no cable).
- Compatible with all Type 2 makes and model of EVs on the market (yes even Tesla) the EVSE / charger is suited to both domestic and commercial locations.
NOTE: Type 1 EVs will require either a Type 2 to Type 1 adaptor cable with the Tethered Zappi or a Type 2 to Type 1 charging cable with the untethered Zappi
Specifications
- Enclosure Dimensions: 439x282x122mm
- Protection Degree: IP65 weatherproof
- Max current: 32A
- Enclosure material: ASA
- Operating temperature: -25C to +40C
- Rated power: 7kW (1-ph)
- Supply: 50Hz
- Standby power consumption: 3W
- Wireless interface: 868 MHz (proprietary protocol) for wireless sensor and remote monitoring options
- Grid current sensor: 100A max. primary current, 16mm max. cable diameter
- Cable entry: rear, bottom or side
- Economy tariff sense: Input 230V AC sensing (4.0kV isolated)
- Earth leakage protection integral: 30mA Type A RCD (EN 61008) + 6mA DC protection (EN 62955)
Installation and Operation manual can be found here - Download Zappi V2 Manual
Important Safety Information:
Please read and follow all safety instructions and the manufacturer’s user manual before operating or charging this product. Improper use or charging (including unattended or in confined spaces) may result in damage, injury, or fire.
Compliance Disclaimer:
As a reseller, we offer products as supplied by the manufacturer or distributor. We ensure products are sold with their provided documentation and representations regarding compliance. For any specific compliance certifications, please refer to the manufacturer’s details or contact us for more information.
Battery Disclaimer
