MOTOR 250W

SPEED 7 km/h

RANGE UP TO 20KM

REAR WHEELS  Front: 8" | Rear 12"

BATTERY 24V/10AH

EASY FOLDING

WEIGHT CAPACITY 120kg

PRODUCT WEIGHT 27.8kg

• 6 Shock Absorbers
• Smart BlueTooth Folding & Unfolding
• Adjustable Joystick Length
• Large 12″ pneumatic rear
• 10Ah Li-Ion Battery – lasts 4-5 years
• 2 Year Warranty on Frame
• 1 Year Warranty on Battery
• Airline Compliant electric Wheelchair

NAVIGATOR Auto Folding Electric Wheelchair

Do you find folding an electric folding wheelchair annoying?

Does your back hurt with all the fuffing around?

If you answered yes then the Navigator auto folding electric wheelchair is ideal for you as it will do all the folding and unfolding work for you.

The Navigator auto folding electric wheelchair is easily folded with the BlueTooth device that comes with it, or folding and unfolding can be done on-board.

The Navigator auto folding electric wheelchair also has great features over its competitors. Features such as

• Massive 6 shock absorbers – Reduces coccyx fatigue when seated for long periods while driving.
• Adjustable Joystick – Adjust to your comfort to reduce wrist fatigue.
• Footrest hand grip – easily use the handgrip to pull or push in freewheel. Unique to AbbiCare
• 2 Years warranty on the frame

This electric wheelchair auto folding is ideal for the ones that want to get out in the great Aussie outback and just drive.

Ideal for NDIS or my aged care packages and people looking to get out into the great outdoors.

Don’t let limited mobility stop you from exploring your world!

The Wheelchair

The NAVIGATOR auto folding electric wheelchair 2022 model is the Lion of power wheelchairs for sale in Australia.

It uses a powerful 10AH batteries that drives 2 250w brushless motors and will take you up to 20kms on a single charge.

With the brushless motors and joystick controller you can say goodbye to regular servicing as our range of power chairs are maintenance free.

A free set of tools comes with the package for periodic screw and nut checking. If you’re a heavy user then we recommend checking 3/4 time a year.

The NAVIGATOR folding power wheelchair will carry up to 120kg with an optimised centre of gravity seat that is comfortable to sit on.

Combined with the free wheeling 8″ front wheels, this electric automatic folding wheelchair can cope with all kinds of road conditions as it grips well over wet grass, cobbled stones and gravel.

Live your life as you want to

Ideal for NDIS and myagedcare packages for the elderly and people with walking impairments such as parkinsons as the joystick allows for easy control.

Brand/Model	ACNAV04	NAVIGATOR
Material	6061 Aerospace Aluminum Alloy
Unfolded Dimension(LxWxH)	840x630x940mm
Folded Dimension(LxWxH)	75x65x45 cm (without joystick)
Joystick Length	20 cm
Width Between Armrests	500mm
Seat Size	460x420mm
N.W.(Without battery)	26kg
Gross Weight	27.8kg
Max Speed	7kmh
Load Capacity	120kg
Motor	DC Brush Motor	250W x 2
Battery x 1	Lithium ion	24V/10AH
Battery Weight	1.8kg
Driving Range	18~20km
Tyres	Front : 8″ PU Solid	Rear: 12″ PU Pneumatic
Ground Clearance	63mm
Turning Radius	Own circle
Grade Ability	10°



Features:

Great indoor manoeuvrability

This folding power wheelchair has excellent manoeuvrability when at home, so driving around tight spaces and furniture will be easy.

The compact dimensions of this power wheelchair is also great around narrow doorways confined spaces, and easy to fit your electric wheelchair under tables.

The NAVIGATOR wheelchair is airplane compliant.

You can enjoy your overseas trip since as it can be taken onboard an aeroplane. The NAVIGATOR folding electric wheelchair battery is MSDS certified and comes with a powerful 10AH capacity.

Ideal companion wheelchair when on the road, gravel or grass and gives you the freedom that you want out of your travel power wheelchair.

Motors

The 2 X 250 W brush motors that are maintenance free are powered by a 10A battery neatly tuck so they can be easily taken out if required.

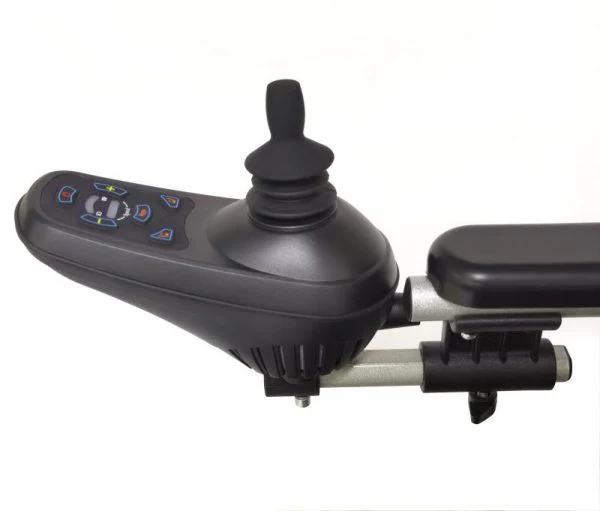

Joystick

The brushless joystick rotates omnidirectional so going out will be a breeze with an intelligent joystick to allow the driver to steer with better control.

Seating

Shock absorbent cushion made by the high quality and hard wearing Oxford Fabric offering you comfort while driving.The breathable material composite is also machine washable and non slip.

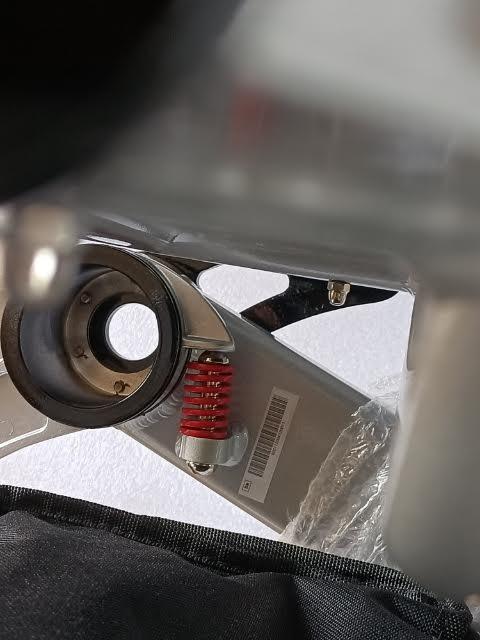

Suspension

To give you a comfortable driving experience all four wheel areas are equipped with well-designed suspension.

There are two extra spring shock absorbers at the mid-front section to absorb those awkward, bumpy journeys offer you a superior driving experience.

With anti-pitch technology; centre of gravity there is no tilting back on a slope and the chair will stop if a hill exceeds 10°.

Tyres

The tyres are maximised with a variety of attributes for adverse terrains such as:

• Load Capacity – A polyurethane (PU) tyre can easily support twice the weight than traditional tyres can support, making polyurethanes ideal for heavy weight-bearing.
• Suspension Like – PU can be made to balance the weight and still offer superb suspension durability when driving over rough surfaces. It adds cushioning to give the driver a better and smoother ride.
• Wear and Abrasion Resistance – Poly tyres will last around four times as long as rubber tyres, as rubber tyres tend to wear down from long distance road friction.
• Chemical Resistance – The benefits of polyurethane tyres make them perfect to resist a multitude of surfaces the Dinkum NAVIGATOR may come across.

The PU tyres fitted on the Dinkum range of folding power wheelchairs will prove to be an all-arounder, more durable, flexible and pliable tyre for your needs.
